katalon2puppeteer

Generate JS testing files

:warning: If your OS is not macos, don’t do this section (please take a look here to know how it works as a reference).
Please checkout tips instead.

Open another terminal window, change directory there.
Continue in an another terminal apart from the old one.
(I believe npm run serve process keeps running there).

cd nuxt-realworld
pwd
# results example ↓↓↓here↓↓↓
# /Users/YOUR_NAME/DIREC/TOR/IES/nuxt-realworld

First, prepare the test directory and move the resource file there.

mkdir -p test/e2e
mv ~/Downloads/ExampleTest.json test/e2e

Next, install a tool by the following command.

npm install puppeteer # install puppeteer module as a dependency of repo
npm install katalon2puppeteer@latest -g # install katalon2puppeteer module globally

Next, Run below.
k2p test/e2e/ExampleTest.json

Now you can find an executable JS code generated by the tool.

tree test/e2e/ExampleTest
# results example ↓↓↓here↓↓↓
# /Users/yabe/Downloads/ExampleTest
# ├── Executor.js
# ├── ext.js
# ├── index.js
# ├── prepare.js
# └── task
#     ├── click.1.js
#     ├── click.2.js
#     ├── click.3.js
#     ├── index.js
#     ├── open.0.js
#     └── ... and other JS files could be here depending on your JSON.
#
# 1 directory, 99999 files

Finally, kick it.
node test/e2e/ExampleTest/index.js

Magic happens.

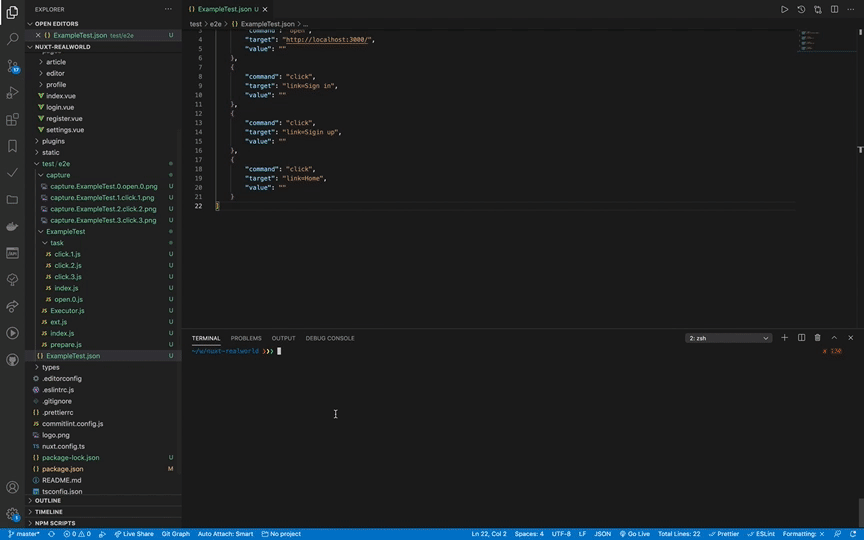

Your Chrome automatically opens and plays manipulations one by one.
Image from Gyazo

:warning: An error happens initially?
Is that Error: net::ERR_CONNECTION_REFUSED at http://localhost:3000/?
Could you confirm you’re running local server with the command npm run serve?

:warning: Your test failed by execution timeout?
Unfortunately, it’s an error you need to adjust some codes.
Please checkout Advanced section.

After a wile,
your test will be done and output message (unless the test does not fail).

~/w/nuxt-realworld ❯❯❯ node test/e2e/ExampleTest/index.js
'promise no.0 open.0 was executed.'
'promise no.1 click.1 was executed.'
'promise no.2 click.2 was executed.'
'promise no.3 click.3 was executed.'
'all promises are executed.'    # <- your test finishes here.

So what?
You can check each actions in your resource JSON dumps screen captures into test/e2e/capture.
Please type below to confirm it.

ls -la test/e2e/capture
#
# you would find the result as ↓below↓
#
# total 1352
# drwxr-xr-x  6 yabe  staff     192 May 24 13:46 .
# drwxr-xr-x  5 yabe  staff     160 May 24 13:53 ..
# -rw-r--r--  1 yabe  staff  308579 May 24 13:55 capture.ExampleTest.0.open.0.png
# -rw-r--r--  1 yabe  staff   32695 May 24 13:55 capture.ExampleTest.1.click.1.png
# -rw-r--r--  1 yabe  staff   35866 May 24 13:55 capture.ExampleTest.2.click.2.png
# -rw-r--r--  1 yabe  staff  308712 May 24 13:55 capture.ExampleTest.3.click.3.png

open test/e2e/capture/capture.ExampleTest.0.open.0.png

Do you realize that the test took screen captures and stored in your PJ?

Well done!
Now your initial test is compete, Let’s continue to the next.
